M16 IP67 Waterproof Molded Cable To Cable Connectors Push Lock 8 Pin Data Connector

Product Categories
Shenzhen Ulinkcon Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

M16 IP67 Waterproof Molded Cable To Cable Connectors Push Lock 8 Pin Data Connector

  • 1
  • 2
  • 3

Brand Name : Ulinkcon

Model Number : M16

Certification : CE/Rohs/TUV/UL

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T,D/A,D/P,MoneyGram,L/C

Supply Ability : 100000 pairs each month

Delivery Time : 5~8 working days

Packaging Details : Standard Export carton

Material : PA66

Waterproof Rating : IP67

Current : 5A

Number of Pins : 8PIN Data Connector

Flame-resistant rating : UL94-V0

Application : Power,Automotive,LED,Electrical equipment,LED lighting etc.

Contact Now

M16 IP67 Waterproof Cable Connectors 8 Pin Male To Female For Data
Product Overview
The M16 8Pin IP67 waterproof molded cable-to-cable connector is a high-precision connection solution specially designed for multi-channel data signal transmission. Adopting one-piece cable injection molding technology and advanced tool-free Push Lock self-locking structure, it enables fast plug-and-lock connection without threaded rotation.
Key Features
  • Integrated Molded Cable Structure for Superior Durability: Adopting seamless integral injection molding for connector and cable, it eliminates structural gaps and hidden failure risks of traditional spliced connectors. The integrated body delivers outstanding tensile resistance, bending resistance and drop resistance, effectively preventing wire breakage, water leakage and loose connection caused by frequent bending, dragging and long-term vibration.
  • 8-Pin High-Density Layout for Accurate Multi-Channel Data Transmission: The optimized 8-core independent channel design is professionally tuned for low-voltage high-precision data transmission. Each signal channel is isolated without crosstalk, supporting synchronous transmission of multiple control signals, sensor data and linkage commands. It features low transmission delay and high signal consistency for precise industrial system operation.
  • Tool-Free Push Lock Self-Locking Design: Upgraded elastic buckle self-locking structure allows effortless plug-in locking and simple press release. It provides clear locking feedback and constant clamping tension. Effectively anti-loosening against equipment vibration, wire dragging and outdoor jitter, it avoids signal interruption and intermittent connection faults and reduces long-term maintenance costs.
  • IP67 Full Ingress Protection for Harsh Environments: Equipped with high-elastic integrated sealing gaskets and molded seamless structure, it fully blocks rainwater, moisture, dust, oil and dew penetration. It maintains stable internal signal transmission in humid workshops, dusty factories and open-air outdoor working environments, protecting internal circuits from environmental corrosion.
  • Professional Cable-to-Cable Design for Flexible Wiring: Different from panel-mounted connectors, this pure cable-to-cable structure requires no fixed mounting hole limits. It supports cross-device long-distance wiring, flexible layout and movable equipment connection. The compact M16 size adapts to narrow installation spaces and diverse precision electromechanical equipment matching.
  • Industrial-Grade Anti-Interference Performance: Made of high-insulation flame-retardant engineering material, the connector features excellent electromagnetic shielding performance. It effectively filters external electromagnetic interference, preventing signal distortion, data packet loss and signal jump, ensuring high stability and accuracy of data transmission in complex industrial electromagnetic environments.
Product Specifications
Connector System Cable-to-Cable
Sealable Yes
Connector & Contact Terminates To Wire & Cable
Circular Connector Type Plug, socket
Shell Type Plastic Shell
Product Type Connector Kit
Number of Poles 8
Current Rating 5A max.
Voltage Rating 60VAC max
Durability Voltage 500VAC @ 60 s.
Shell Material PA66
Circular Connector Insulation Material Type Low Fire Hazard Thermoplastic
Hermetically Sealed Yes
Entry Style Side
Environmental Protection Type Elastomer Sealed, Hermetically Sealed
O-Ring Material Elastomer Sealed, Hermetically Sealed
Environmental Protection Yes
Operating Temperature Range -40°C to +105°C
IP Water Sealing Level IP67
IP Dust Sealing Level 6
Durability Rating 500 Cycles
UL Flammability Rating UL 94V-0
Additional Features
  • Push lock quick release system for efficient operation
  • Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin configurations
  • Field assembly version with both wire-to-wire and wire-to-board options
  • Current rated 5A for long-term continuous operation
  • Cable assembly service supported with custom options available
  • OEM/ODM services welcome for specialized requirements
Application Industries
  • Communications Equipment
  • Product Coding Machines and Inkjet Systems
  • Inventory Product Coding
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery

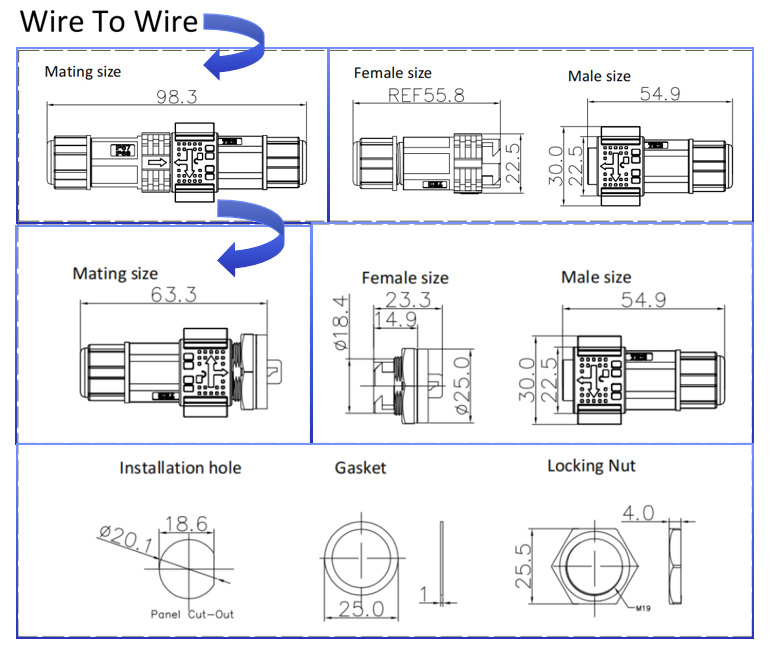

Production Dimensions
M16 IP67 Waterproof Molded Cable To Cable Connectors Push Lock 8 Pin Data Connector
Technical Details
M16 IP67 Waterproof Molded Cable To Cable Connectors Push Lock 8 Pin Data Connector
M16 IP67 Waterproof Molded Cable To Cable Connectors Push Lock 8 Pin Data Connector
Frequently Asked Questions
Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

How many materials you can provide?

There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
